| Recording Bandwidth | |
| Inputs | 16Mbps~128Mbps |
| out | 216Mbps |
| Live | |
| Analog video-input | 32CH inputs |
| IP Video Input | 4ch (only IP up to 32ch) |
| Composite Video Input | up to 36ch (Analog video + IP video) |
| Recording and Playback | |
| Compression | Audio: G.711a；Video: H.264/H.265 |
| Display resolution | Analog: 5MP-Lite:20fps / 4MP-Lite:30fps / 1080P / 720P / 960H:30fps；IP: 5MP / 4MP / 3MP / 1080P / 720P |
| Speed | Analog: 5MP-Lite:15fps(each ch) / 4MP-Lite:20fps(each ch) / 1080P:30fps(each ch) / 720P: PAL:25fps(each ch), NTSC:30fps(each ch)；IP: PAL:25fps(each ch), NTSC:30fps(each ch) |
| AI | |
| PID | Perimeter Intrusion Detection |
| LCD | Line Crossing Detection |
| PD&VD | Human & Vehicle Detection |
| FD | Face Detection |
| FR | Face Recognition |
| Event | |
| MD | Sensitivity Level 1~8 |
| Video loss | Beep, Email, Push notification to Mobile APP |
| Playback | |
| Playback function | Fast forward / backward (2x, 4x, 8x,16x)；Slow forward (1/2x, 1/4x, 1/8x,1/16x) |
| Playback | 5MP-lite: 480fps (Max 16CH playback)；4MP-lite: 720fps (Max 16CH playback)；1080P:480fps (Max 16CH playback)；720P:1080fps (Max 16CH playback) |
| UI / Monitoring | |
| Local UI | 5.0 |
| WEB | IE10/11；Safari V12.1 above；Firefox V.52 above；Google Chrome V.57 above；Edge V.79 above |
| Mobile viewer | CybVu |
| Interface | |
| P/W Reset | Factory Reset: Press 10 seconds |
| Monitors | BNC 1 (704*576)；VGA 1；HDMI 1 up to 3840*2160(4K) |
| Ethernet | 2 RJ45 100/1000 Base-T |
| USB | USB2.0*1(front)；USB3.0*1(rear) |
| Audio | 8 in / 1 out |
| HDD | 4 SATA HDD, Up to 12 TB capacity for each disk |
| ESATA | 1 |
| RS485 | 1 |
| Alarm Input/out | 16 in / 1 out |
| General | |
| OSD Language | English/French/Spanish/Portuguese/German/Italian/Greek/Danish/Finnish/Russia/Hebrew/Turkish/Bulgarian/Arabic/ Korean/Japanese/Thai/Hindi/Romanian/Dutch/Polish |
| Dimension (WxDxH) | 378*326*66mm |
| Input Voltage/Current | DC12V/5A |
| Power consumption | 21W |
| Temperature/Humidity | Temperature: -10°C~+50°C (14°F ~ 122°F)；Humidity: Less than 90%RH |

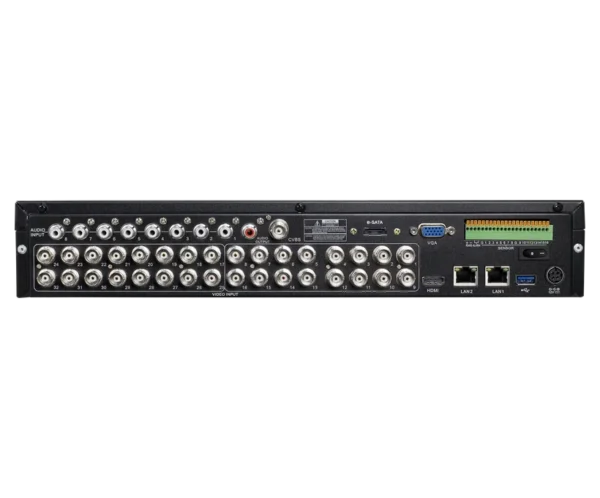

Primocase PDR-2G604
• 32CH analog video inputs
• 4ch IP video input (only IP up to 32ch)
• Composite video input up to 36ch
• H.264/H.265 video compression
• AI: PID, LCD, PD&VD, FD, FR
• 4 SATA HDD, up to 12 TB capacity for each disk
• HDMI 4K output
